ReVolt-Fuel® Service

At ReVolt®, we harness the power of the sun to charge our energy packs housed in CanaVans — our innovative mobile battery trucks designed to bring clean energy directly to your job site.

Our Mules serve as the gateway to this power, providing a seamless and reliable 120kW power source with uninterrupted and unlimited capacity. Need even more flexibility? The WeVolt offers enhanced portability to meet your energy demands wherever you need it.

As the only company in the world delivering this level of clean, mobile energy, ReVolt® is revolutionizing how you power your projects.

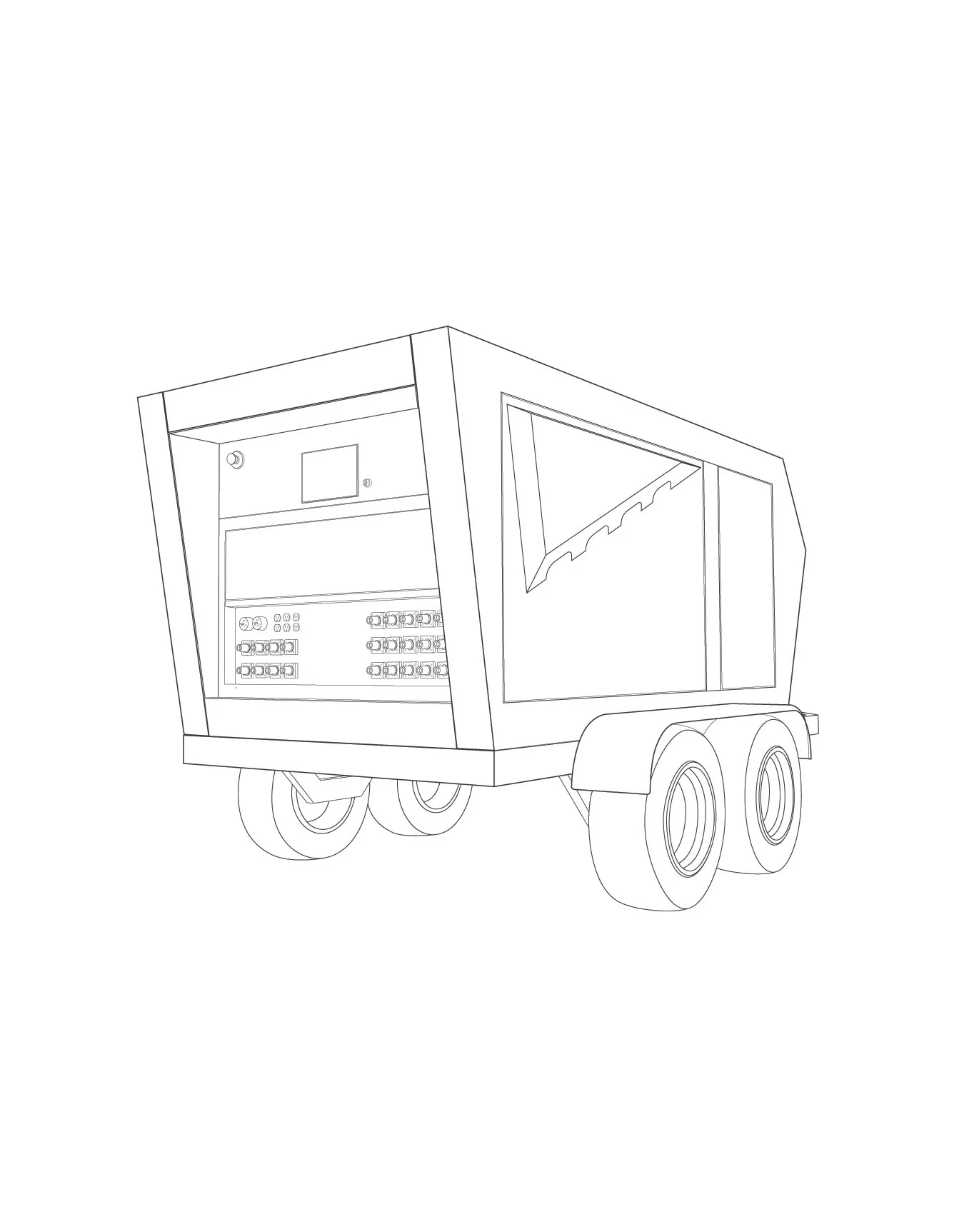

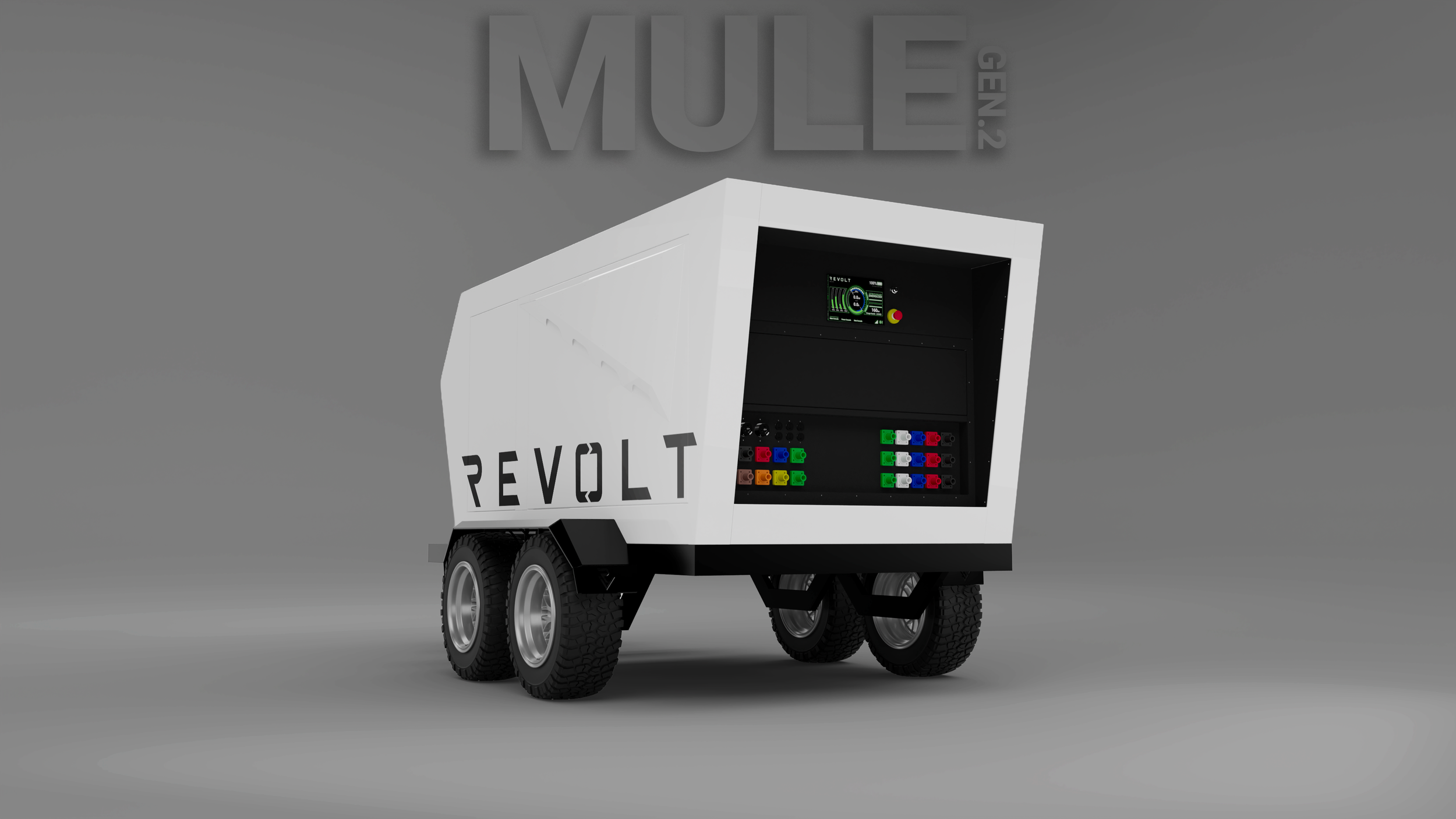

Mule: Mobile Electric Generator

When you need power, ReVolt® delivers. Our Mule battery unit arrives directly at your job site, providing reliable, on-demand energy across 480V, 208V, 240V, and 110V connections. With a 140 kWh capacity and 120kW output, the Mule is built for performance. At 13 feet long, 6 feet wide, 6.5 feet tall, and weighing 8,500 pounds, it’s a compact yet powerful solution. It offers versatile connectivity, equipped with three 208VAC 3ɸ Camlock plugs and one 480VAC 3ɸ Camlock plug. No need to worry about battery life—our team actively monitors your power levels and deploys a Canavan for on-site recharging whenever needed, ensuring continuous operation without interruption.

Mule Manual PDF Rental Agreement

  • Capacity: 140 kWh

    Output: 120kW

    Dimensions: 13’ L x 6’ W x 6.5’ T

    Weight: 8500 lbs

    Output Plugs:

    • 3x 208VAC 3ɸ Camlock

    • 1x 480VAC 3ɸ Camlock

Capacity: 16 kWh

Output: 14kW

Dimensions: 36” L x 20” W x 28” T

Weight: 380 lbs

Output Plugs: 3x 120VAC 20A, 1x 208VAC 30A 1ɸ,

1x 208VAC 30A 3ɸ Camlock

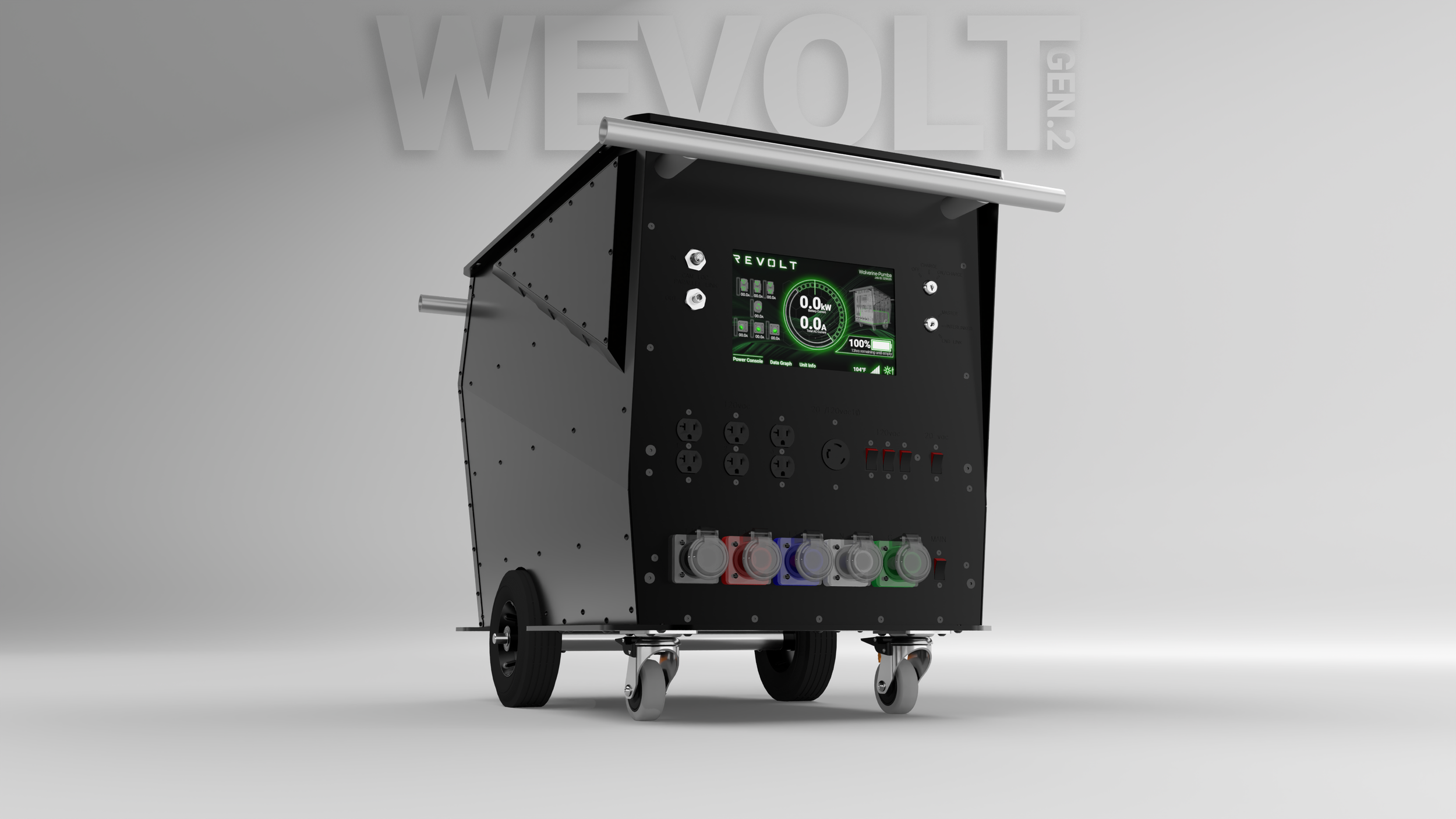

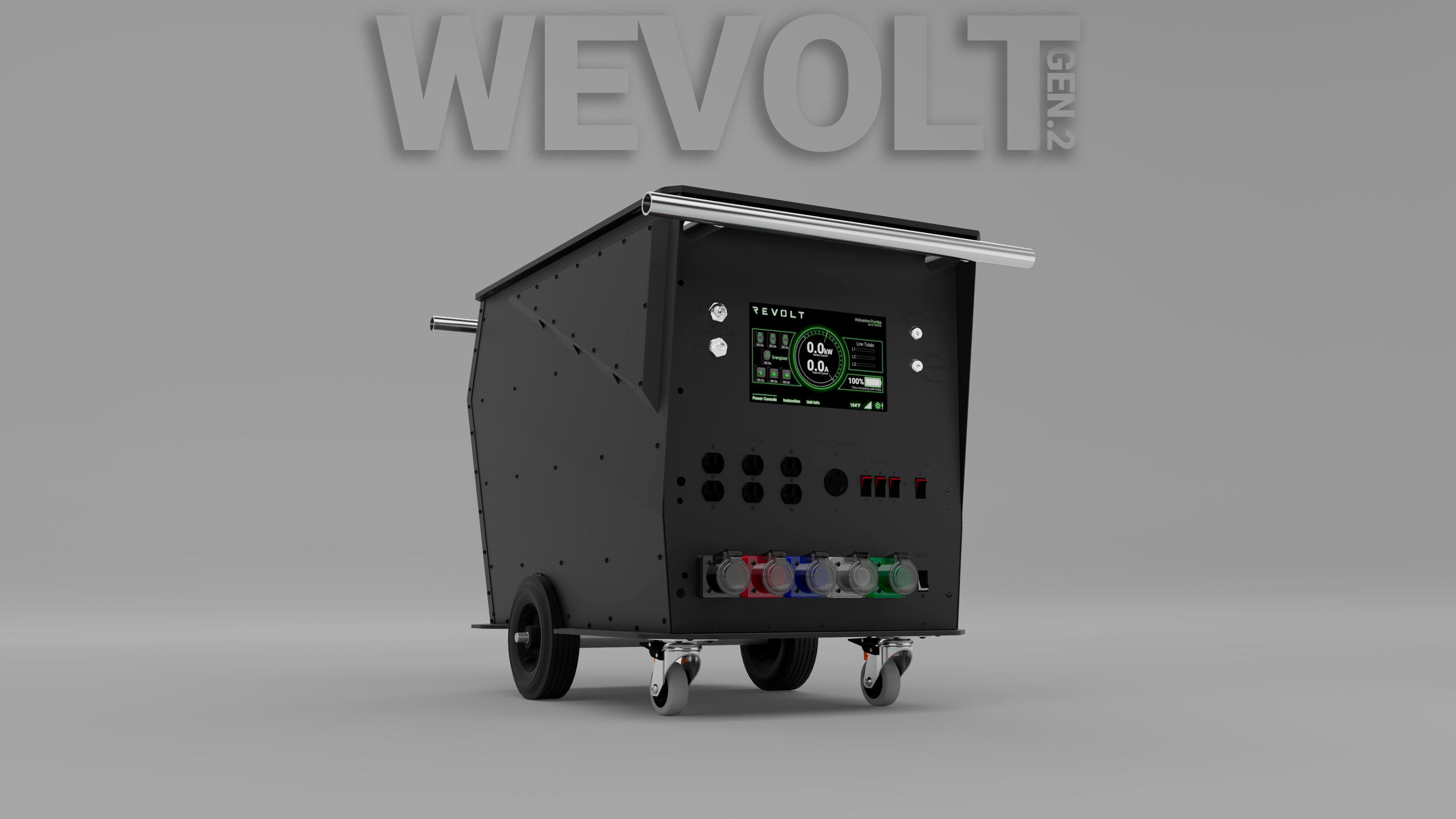

WeVolt Manual PDF Rental Agreement

  • Capacity: 16 kWh

    Output: 14kW

    Dimensions: 36” L x 20” W x 28” T

    Weight: 380 lbs

    Output Plugs:

    • 3x 120VAC 20A

    • 1x 208VAC 30A 1ɸ

    • 1x 208VAC 30A 3ɸ Camlock

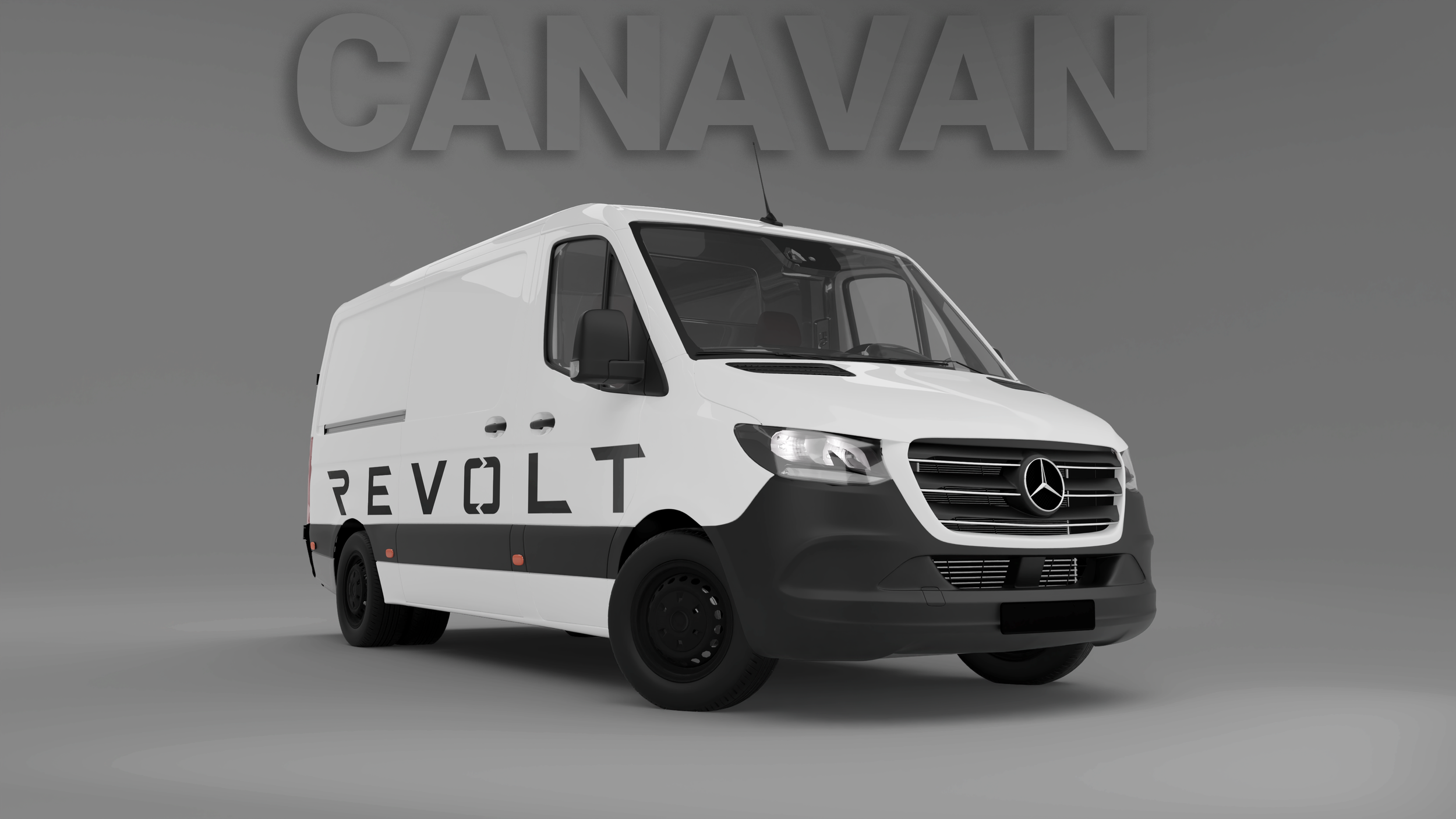

CanaVan: Electric Recharge Truck

The Canavans are a 4500 series sprinter van, driven by ReVolt team members to the job site and parked near the Mule. Each Canavan has the capacity to refuel two completely drained Mules. Our team member connects one large charge cable from the Canavan to the Mule, and charging commences automatically. All of this happens with zero interruption, flicker, spike, or droop for the output power you are consuming. Once your ReVolt Mule is recharged, the Canavan heads back to our solar farm or it can remain connected for additional power reserve.

  • Recharges a Mule from 0-90% in 1 hour

    Capacity: 420 kWh

    Output: 240kW

    Output Plugs:

    • 1x charge plug

    • 1x Ethernet communication cable

Technical Support

For immediate technical support please call: (404) 996-6494

Mule V1

  • Mule V1

    • Lithium-Iron Phosphate (LFP)

    • 800v DC UL 1973 Certified

  • Mule V1

    • Capacity: 140 kWh

    • Output: 120kW

    • Dimensions: 13’ L x 6’W x 6.5’T

    • Weight: 8500 lbs

    • Output Plugs: 3x 208VAC 3ɸ Camlock,

      1x 480VAC 3ɸ Camlock

Mule V2

  • Mule V2

    • Nickle Magnesium Cobalt (NMC)

    • Samsung SDI 8.8kWh 800v: UL 1973 certified

  • Mule V2

    • Capacity: 145 kWh

    • Output: 160kW

    • Dimensions: 13’ L x 6’ W x 6.5’ T

    • Weight: 6500 lbs

    • Output Plugs:

      • 3× 400Amp 208v 3ɸ Camlocks

      • 2× 100Amp 240v 1ɸ Camlocks

      • 2× 5Amp 240v 1ɸ Twist Lock

      • 3× 20Amp 110v 1ɸ Sockets

Mule V3

  • Mule V3

    • Lithium Manganese Iron Phosphate (LMFP)

    • 800v DC UL 1973 Certified

  • Mule V3

    • Capacity: 145 kWh

    • Output: 160kW

    • Dimensions: 13’ L x 6’ W x 6.5’ T

    • Weight: 6500 lbs

    • Output Plugs:

      • 3× 400Amp 208v 3ɸ Camlocks

      • 2× 100Amp 240v 1ɸ Camlocks

      • 2× 5Amp 240v 1ɸ Twist Lock

      • 3× 20Amp 110v 1ɸ Sockets

    • Lithium-Ion (NCM)

    • Samsung SDI 8.8kWh 48v: UL 1973 certified

    • Max Capacity: 17.5kWh

    • Max Output: 15kWh

    • Output: 3x 110v 20amp / 1x 208v 1phase / 1x 208v 30amp 3phase

    • Dimensions: 36” L x 20” W x 28” H

    • Weight: 480lbs

  • One 208v 1phase plug

    • Charge time is approximately 4 hours from 0%.

    • Ensure you are connected to a 50amp breaker.

    Two 110v Plugs

    • With one 110v plug, the charge time is approximately 16 hours from 0%.

    • With two 110v plug, the charge time is approximately 8 hours from 0%.

    • Each plug will draw 15 amps, please ensure if charging with two 110v plugs, they are connected to separate breakers.

At ReVolt-Fuel®, we are revolutionizing clean, mobile power solutions for remote sites and off-grid operations. Whether it's film productions, construction, live events, or emergency response, we provide sustainable, high-performance energy that eliminates the need for fossil fuel generators.

By choosing ReVolt-Fuel®, businesses & organizations gain a reliable, zero-emission power partner, reducing their carbon footprint while ensuring uninterrupted energy in the most demanding environments.

Join us in transforming how industries are powered. Together, we can drive innovation, sustainability, and efficiency—anywhere power is needed.
